1.產品概述General
General description of the product
CJA11-1系列電動操動機構可用于發電機斷路器的隔離開關（DS）和接地開關（DS）的分合操動。
CJA11-1 series motor operating mechanism can be used for the opening and closing operation of disconnector (DS) and earthing switch(ES) of the generator circuit breaker.

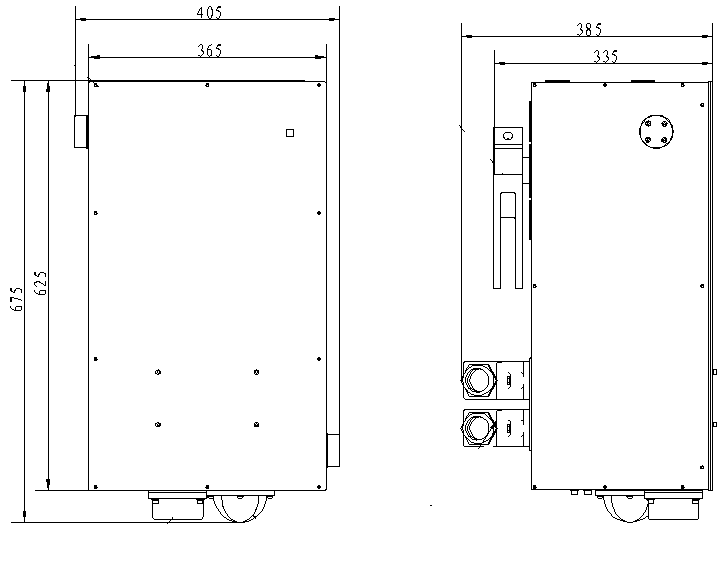

2.產品外形及尺寸Outline and dimensions
3 .結構特點：Structural Features
1.輸出扭矩大，結構緊湊；
Large output torque and compact constructions
2.系列化，標準化程度高。
Serialization and high standardization.
4 .技術參數：Technical Data
序號 No. | 項目 Item | 單位 Unit | 技術參數 Technical Data |
1 | 額定電機電壓 Rated motor voltage | V | DC/AC 220 |
2 | 電機額定功率Rated motor power | W | 800 |
3 | 額定控制電壓Rated control voltage | V | DC/AC 220 /DC110 |
4 | 加熱器額定功率Rated power for heater | W | 50W |
5 | 加熱器電壓Heater voltage | V | AC220 |
6 | 輸出扭矩Output torque | N·m | 1000 |
7 | 分合閘時間Operating time | s | <4 |
8 | 輸出轉角（Output angle） | ° | 120 |
5.應用成果：TechnicalData
CJA11-1系列電動操動機構用于三峽等多個重點工程。
CJA11-1 series motor operating mechanism has been applied in The Three Gorges underground Power station and many other key projects.
