1.產品概述General
CJ16系列電動操動機構是我公司為ZHW4-126KV復合式組合電器研發的一種既可操作隔離開關又可操作接地開關的三工位電動操動機構。本產品具有外形緊湊，可靠性高、體積小、噪音低等優點。
CJ16 series motor operating mechanism is a three-working position motor operating mechanism especially designed for ZHW4-126kV combined-type composite apparatus, which can operate DS and ES. This product has advantage of compact configuration, high reliability, small size and little noise.

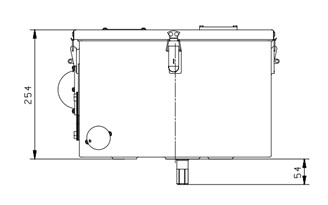

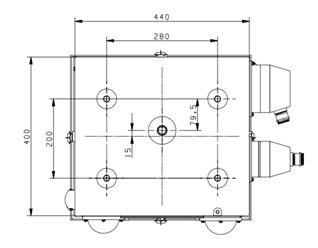

2、產品外形及尺寸Outlineand dimensions
1）CJ16G
2）CJ16D
3.技術參數 Technical data
項目 Items |
單位 Items |
CJ16G技術數據 CJ16G technical data |
CJ16D技術數據 CJ16D technical data |
輸出扭矩 Output torque |
N.m |
200 |
200 |
輸出轉角 Output angle |
° |
64° |
93° |
額定電壓
Rated voltage |
電機 Motor |
V |
AC/DC 220V |
AC/DC 220V |
控制回路 Control circuit |
DC220V DC110V |
DC220V DC110V |
加熱器 Heater |
AC220V |
AC220V |
電機額定功率 Rated power of motor
|
W |
400 |
400 |
電機額定電流 Rated current of motor |
A |
3.2 |
3.2 |
加熱器功率 Heater power |
W |
50 |
50 |
電動合分時間 Electric opening and closing time |
S |
<4 |
<4 |
4.特點Structural Features
1）本系列機構可分別操動隔離開關和接地開關，實現三種工作位置。
This type of mechanism can separately operate DS and ES, which can realize three working position.
2）本系列機構能實現電動操作和手動操作，電動操作和手動操作之間具有電氣和機械聯鎖。
This type of mechanism can realize both electrical operation and manual operation, and between the electrical operation and manual operation, there is electrical and mechanical interlocking.
3）本系列機構電機回路設計了互鎖功能，機構可靠性十分良好。
The motor circuit of this type of mechanism has the interlocking function, so that the reliability of the mechanism is very good.
4）箱體為鑄鋁外殼，密封性好。
The box has casted aluminium enclosure, and has good sealing performance.
5.應用成果：Technical Data
本系列機構已經在國網河南鄭州供電公司、濮陽供電公司，國網陜西西安供電公司，國網青海供電公司多個重要工程廣泛應用.
This type of mechanism has applied to Zhengzhou power supply company of State Grid in Henan province, Puyang power supply company, Xi’an Power Supply company of State Grid in Shaanxi, State Grid Qinghai Power Supply Company and many other projects.
