1.產品概述：General
CJA2 (GIS088B)型電動操動機構配用于126kV及800kV氣體絕緣金屬封閉開關設備（GIS)的檢修接地開關。
CJA2(GIS088B) motor opearting mechanism is equipped with earthing switch of GISfrom 126kV to 800kV GIS.

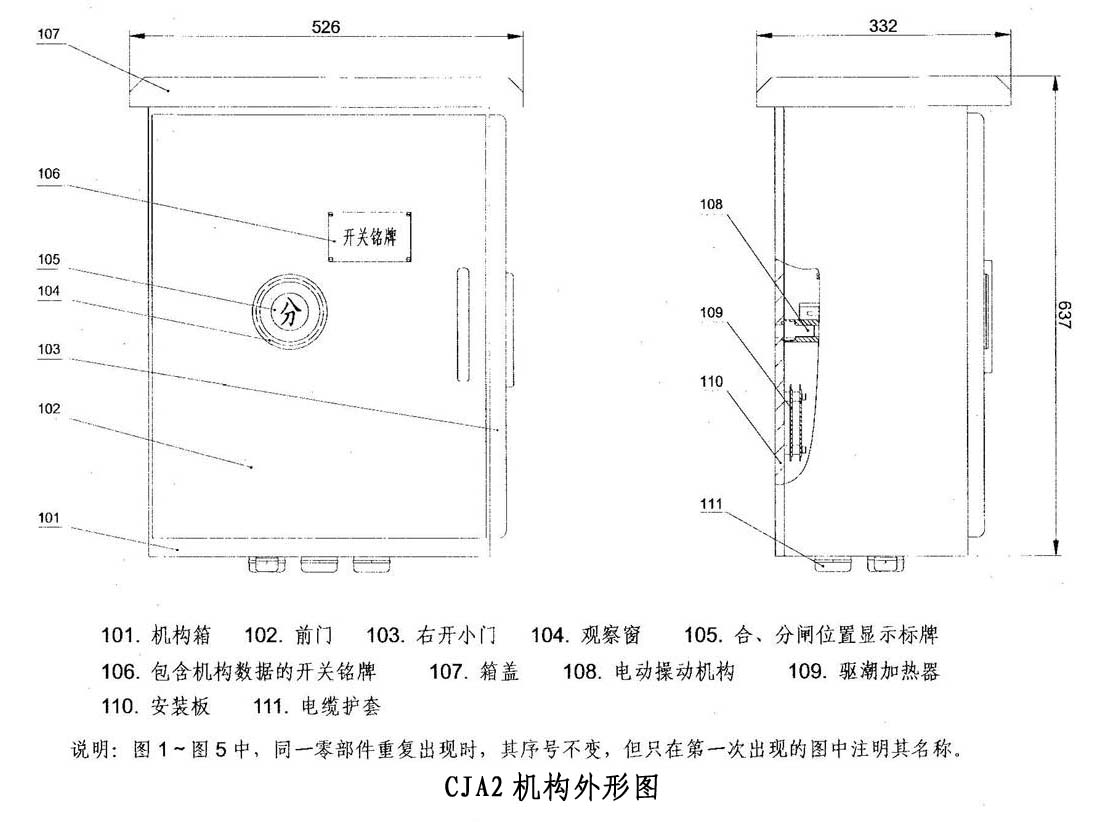

2.產品外形及尺寸：Outlineand dimensions
3.技術參數： Technical data
序號 No. |
項目 Item |
單位 Unit |
技術參數 Technical Data |
1 |
額定電機電壓 Rated motor voltage |
V |
DC/AC 220 , DC110 |
2 |
電機額定功率 Rated motor power |
W |
90 |
3 |
額定控制電壓 Rated control voltage |
V |
DC/AC 220 , DC110 |
4 |
加熱器額定功率 Rated power for heater |
W |
50W |
5 |
加熱器電壓Heater voltage |
V |
AC220 |
6 |
機構重量Weight |
kg |
28 |
7 |
合閘時間Closing time |
S |
≤4 |
8 |
分閘時間 Opening time |
S |
≤4 |
4.應用成果：Technical Data
先后應用于800kV蘭州東變電站、甘肅永登變電站、青海烏蘭變電站等工程項目。
It is applied to 800kV Lanzhou Eastsubstation, Gansu Yongdeng Substation, Qinghai Wulan substation and otherprojects.
